Profiles

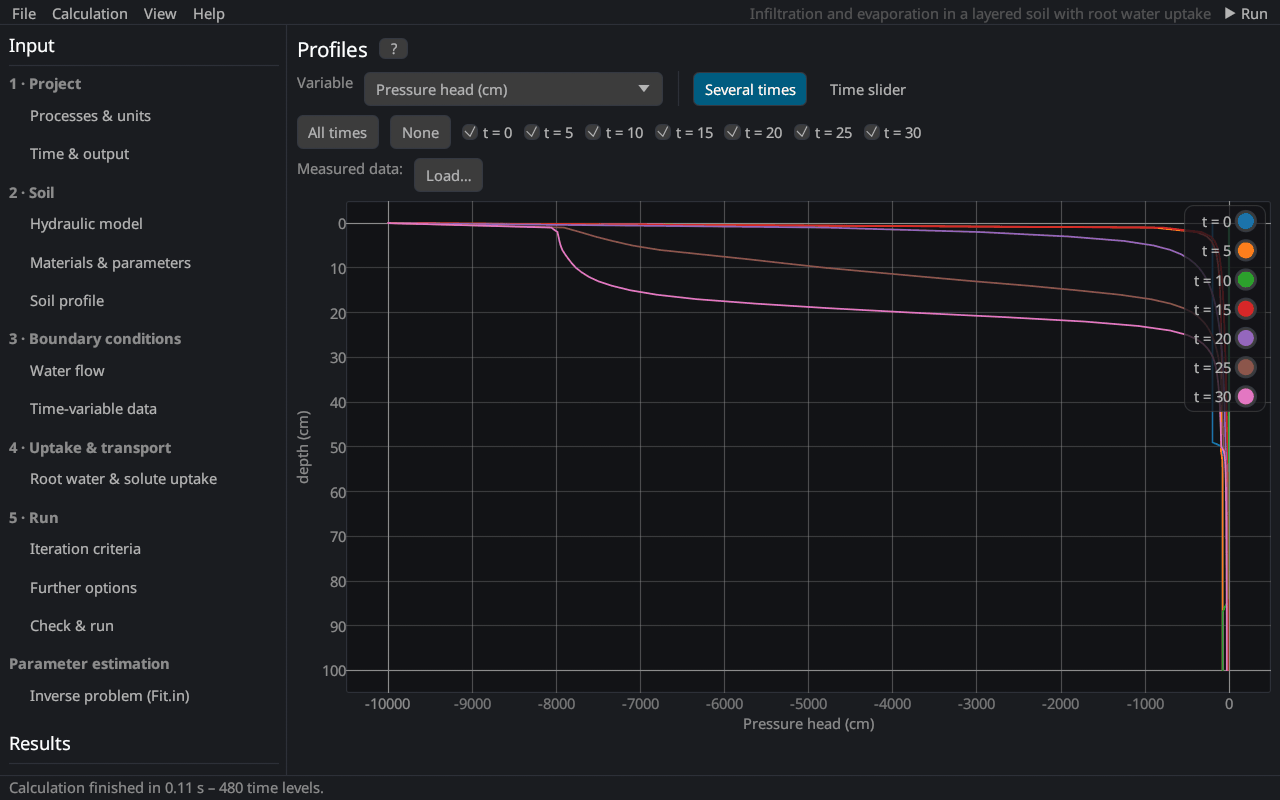

The page shows nodal values against depth at the print times, as Profile Information in HYDRUS-1D (file Nod_Inf.out, here NOD_INF.csv).
| Control | Description |
|---|---|
| Variable | pressure head, water content, hydraulic conductivity, water capacity, flux, root water uptake, v/Ks of the top node, temperature, concentrations and sorbed / immobile concentrations of each solute |
| Several times | the profiles of the checked print times together (All times, None) |
| Time slider | one print time at a time on fixed axes; ▶ plays through the print times, |◀ and ▶| step |
| Measured data | Load… adds measured values (depth, value) for the first shown print time (measured data) |
The print times are set on the page Time & output. The profiles of a run can serve as the initial condition of a new run (soil profile).
